element will switch off automatically.

To indicate that the iron has shut off, the red

“Auto Stop” pilot light (O) will start blinking and a

sound signal will be

audible (fig. 25).

In a horizontal position,

this will happen after 30

seconds.

In a vertical position, this

will happen after

8 minutes.

- When picking up the iron again, the red “Auto

Stop” pilot light (O) will go out.

The amber temperature pilot light (H) will come

on. This indicates that the iron is heating up

again.

- Wait for the amber pilot light to go out. Then

you can recommence ironing.

Maintenance

• It is important to apply "self-cleaning" at least

every two weeks to remove scale etc.

• The harder the water the more the iron should

be self-cleaned.

- Set the steam control (B) to position O.

- Open the filling funnel and fill the water

reservoir up to the MAX indication.

- Close the filling funnel.

- Put the iron on its stand.

- Set the temperature control (A) to MAX.

- Insert the mains plug into the wall socket.

- Allow the iron to heat up until the amber

temperature pilot light (H) first goes out and

then comes on again.

- Set the 3-positions switch in position ∫ (fig.

17) and remove the iron (without power unit)

from the stand (fig. 18).

- Hold the iron horizontally over the sink.

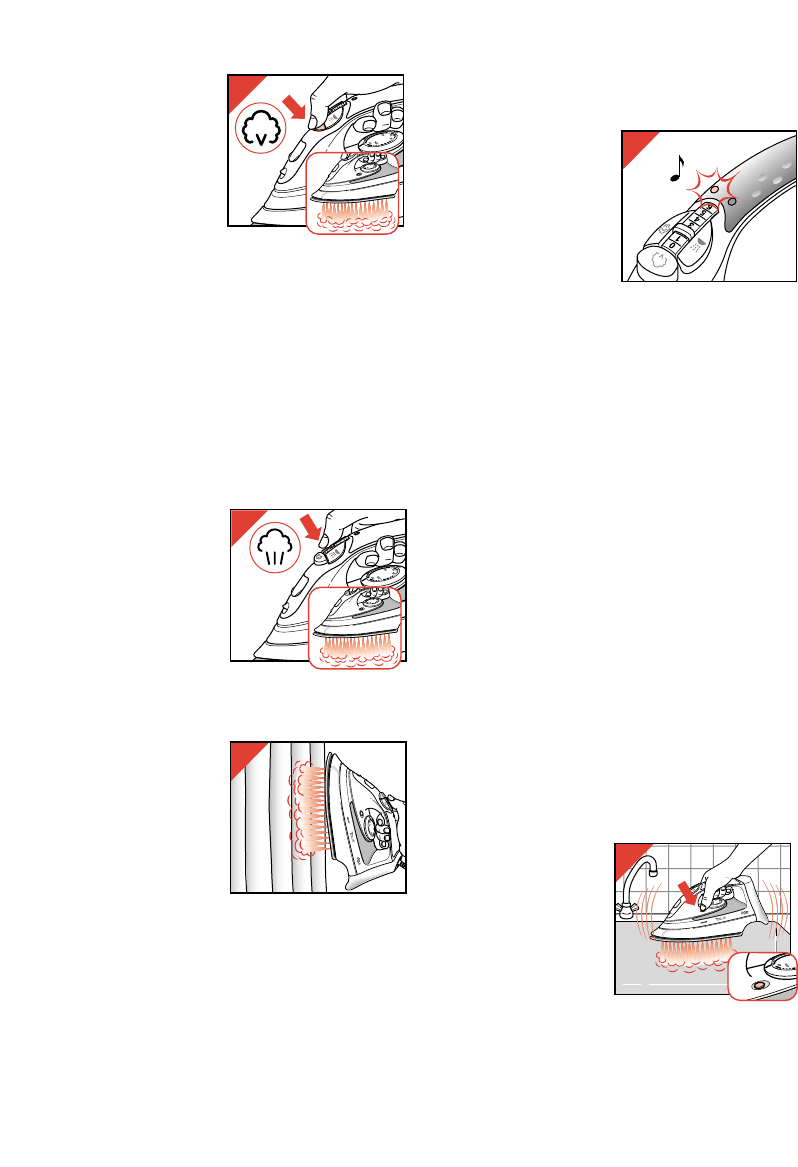

- Press button "Self

clean" (I) (fig. 26).

Boiling water and

steam will now be

ejected from the

holes in the

soleplate.

Impurities and scale

(if any) are washed

away with it.

- Move the iron forwards and backwards while

this happens.

- Release button "Self clean" after one minute or

when the water reservoir has become empty.

- Repeat self-cleaning if you notice that much

impurity and/or scale has been washed out.

8

Turbo steam

0

(types HI 568/69 only)

This feature provides

extra steam to remove

stubborn creases. The

extra steam works as

long as the Turbo steam

button 0 (F) is kept

pressed in.

- Press and hold the Turbo steam button 0 (F)

for a couple of seconds (fig. 22). Then release

the button.

• Do not keep the button pressed-in for more

than 10 seconds without interruption.

Allow at least one minute interval before

applying Turbo Steam again.

If the amber temperature pilot light (H) comes

on, this indicates that the iron is heating up

again.

- Wait for the amber pilot light to go out. Then

you can recommence ironing.

Shot of steam 9

By pressing button 9

(E) an intense “shot” of

steam is emitted from

the soleplate (fig. 23).

This can be very useful

e.g. when removing

stubborn creases.

The “shot” of steam

facility can be used only while ironing with high

ironing temperature (2 or 3).

Vertical position

“Shot of steam” can also

be applied when holding

the iron in a vertical

position (fig. 24). This is

useful for removing

creases from hanging

clothes, curtains, etc.

Ironing without steam

For ironing without steam proceed as described

for steam-ironing. However, the steam control (B)

should remain in position O (= no steam).

“Auto stop” (automatic safety shut-off)

(types HI 568/69 only)

If (only in the corded mode) the iron is left

motionless for more than 30 seconds, the heating

11

22

23

24

25

26
